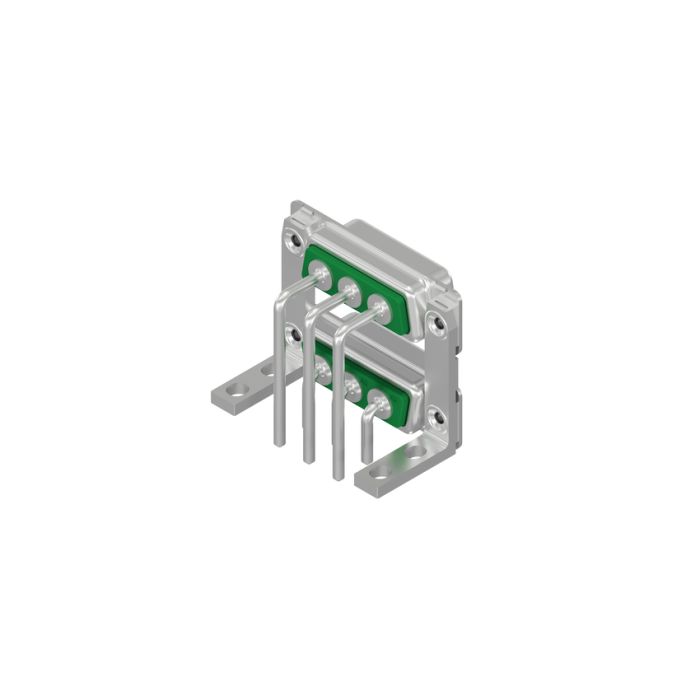

D-SUB Combination Dual Port
3
W
3/3
W
3
Dual port socket upper / Socket bottom
Metal bracket
UNC 4-40
| Product type | D-SUB Combination Dual Port |
| Contact type | Dual port socket upper / Socket bottom |
| Size/Number of positions | 3W3/3W3 |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Metal bracket |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
| Port 1 | Invertiert |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| Working voltage power | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Insertion force | 21 N |
| Extraction force | 21 N |
| Power resistance standard | 1 mOhm |
