Part No: 13-001233
Ürün Kısa Açıklaması

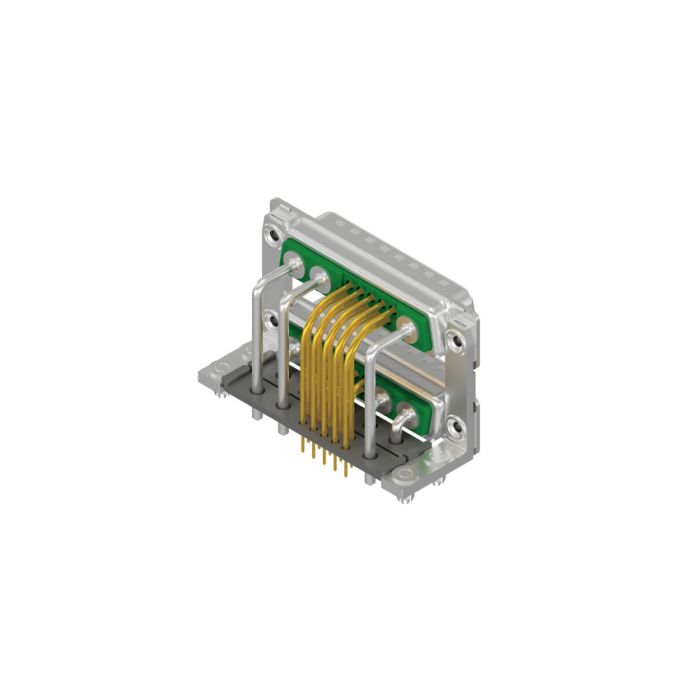

D-SUB Combination Dual Port
13
W
3/13
W
3
Dual port plug upper / Plug bottom
Solder pin angled
Metal bracket
UNC 4-40
General Data
| Product type | D-SUB Combination Dual Port |
| Contact type | Dual port plug upper / Plug bottom |
| Size/Number of positions | 13W3/13W3 |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin angled |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
| Port 1 | Invertiert |
Technical Data
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Insertion force | 55 N |
| Extraction force | 23 N |
| Contact resistance standard | 8 mOhm |
| Power resistance standard | 1 mOhm |
