Part No: 122B11749X
Ürün Kısa Açıklaması

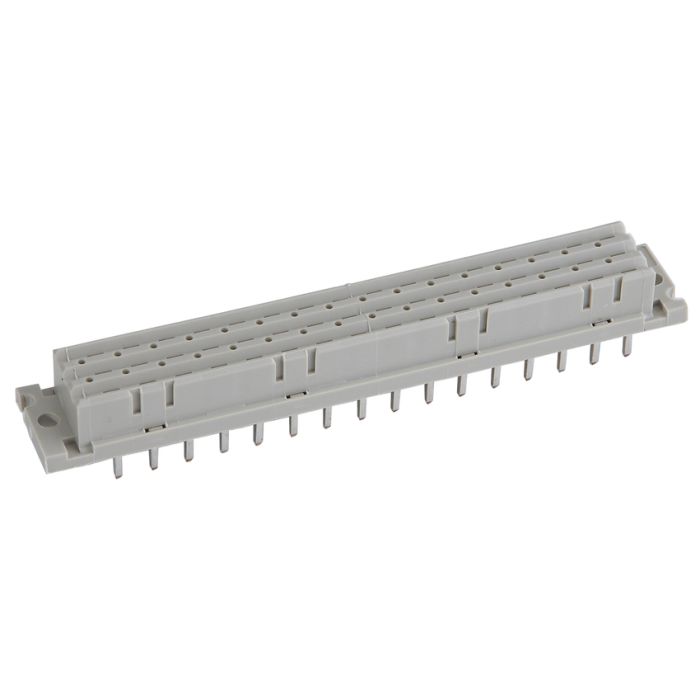

DIN EN 60603-2 (DIN 41612)Bauform F- flach
Female Connector
32-pos.
Solder pin straight
General Data
| Bauform F- flach | Contact type |
| Female Connector | Size/Number of positions |
| 32-pos. | Termination signal [e.g. clamp, crimp, solder, SMT] |
Technical Data
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Current rating signal | 5,5 A at +20°C |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Insertion force | 50 N |
| Extraction force | 50 N |
| Contact resistance standard | 15 mOhm |
