Part No: 122A11139X
Ürün Kısa Açıklaması

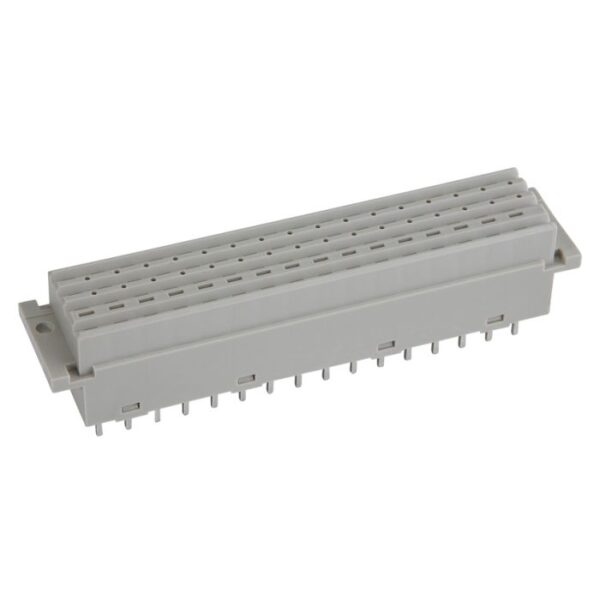

DIN EN 60603-2 (DIN 41612)Type GFemale Connector
64-pos.
Solder pin straight
General Data
| Type G | Reihe z+b+d+f |
| Contact type | Female Connector |
| Size/Number of positions | 64-pos. |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
Technical Data
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Current rating signal | 5,5 A at +20°C |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Insertion force | 100 N |
| Extraction force | 100 N |
| Contact resistance standard | 15 mOhm |
