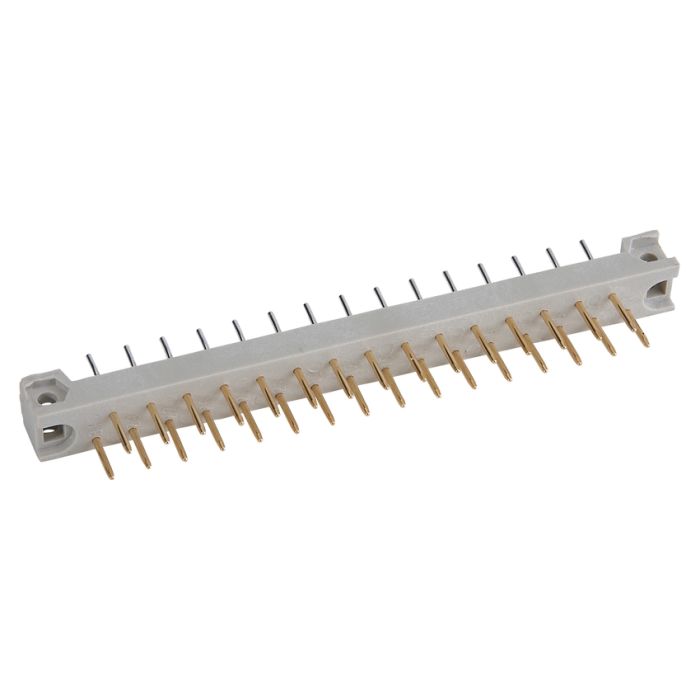

Part No: 101B10029X
Ürün Kısa Açıklaması
DIN 41617
Male connector
21-pos.
Solder pin
5,0 mm
General Data
| Product type | DIN 41617 |
| Size/Number of positions | 21-pos. |
| Contact type | Male connector |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin |
| Contact spacing | 5,0 mm |
| Insulator | Special insulator |
Technical Data
| Current rating signal | 4 A |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Contact resistance standard | 15 mOhm |
| Extraction force | 33 N |
| Insertion force | 33 N |
| Quality class | Quality class 2 |
| Mating cycles | 400 |
| Insulation resistance | 10 GOhm |
Material Data
| Insulator material | PC GF UL 94 V-1 |
| Insulator color | Grey |
| Signal contact material | Copper alloy |
| Plating signal contact (mating area) | Gold over nickel |
| Plating signal contact (termination area) | Tin plated |
