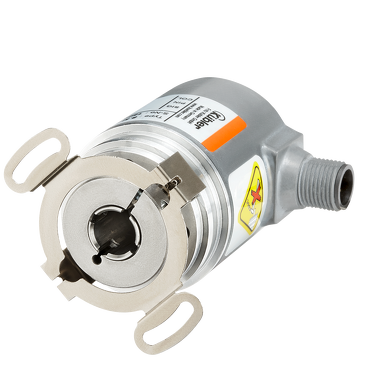

Reliable and insensitive
Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors.
Reduced number of components ensures insensitivity.
IP67 protection and wide temperature range from -40°C to +85°C.
Up-to-the-minute performance
Operation possible with any IO-Link master.
Point-to-point communication in automation networks.
Use of cost-effective unshielded cables possible.
Automatic saving of device parameters.
Firmware update via IO-Link.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 ” hollow shaft, blind hole |
| Flange type |
Spring element, long Stator coupling Ø 36.00 mm |
| Working temperature | -40 °C … +85 °C |
| Protection level |
IP65 IP67 |
| Connection types |
M12 connector axial M12 connector radial |
| Max. rotational speed | 6.000 min-1 |
| Weight | 210 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. | 14 bits singleturn |
| Power supply | 18…30 V DC |
| Interfaces |
IO-Link |
