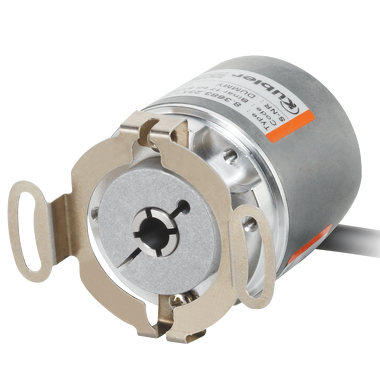

Kuebler Sendix F3673
Reliable and insensitive
Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors.
Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use.
Patented Intelligent Scan Technology™ with all single and multiturn functions on one OptoASIC – thus highest reliability, a high resolution of up to 17 bits and 100% magnetic insensitivity.
Performance optimized
High precision with a data update of the position value ≤ 1 µs.
High-resolution feedback in real time via SinCos and RS422 incremental outputs.
Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm hollow shaft, through 10 mm hollow shaft, blind hole 8 mm hollow shaft, through 1/4 ” hollow shaft, through |
| Flange type |
Ø 36.00 mm Ø 46.00 mm |
| Working temperature | -40 °C … +90 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Tangential cable M12 connector axial |
| Max. rotational speed | 12.000 min-1 |
| Weight | 200 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental 17 bits singleturn |
| Power supply |
5 V DC 10…30 V DC |
| Interfaces |
SSI, binär |
